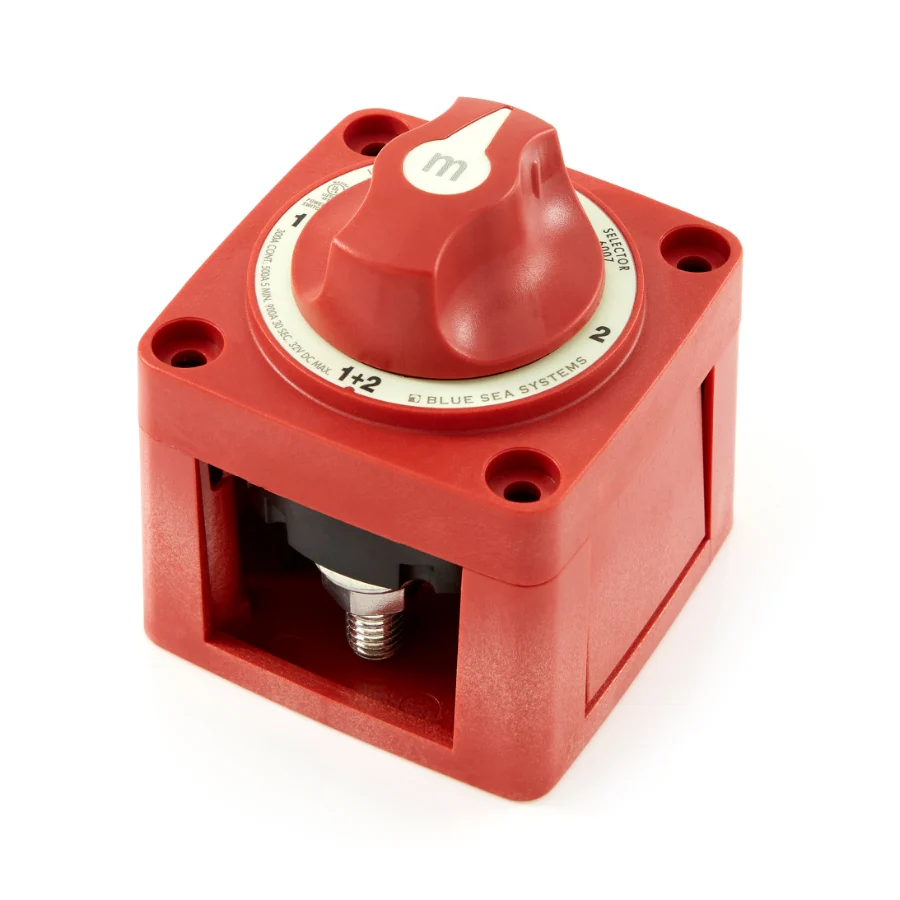

Battery Switch
- Switches isolated battery banks to all loads or combines battery banks to all loads
- Make before break contact design allows switching between battery banks without power interruptions
- Case design allows surface or rear panel mounting
- Ignition protected - safe for installation in gas engine compartments

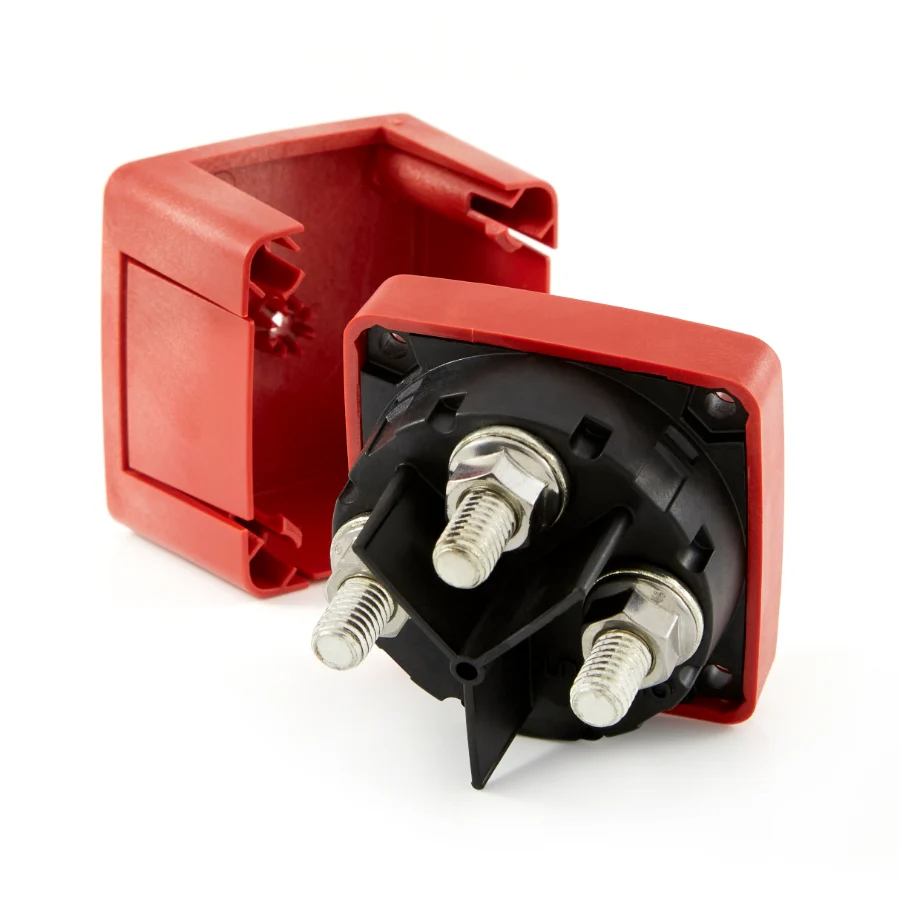

- Isolating cover with snap-on sections protects rear contacts
- 2 Battery inputs
- 0.77 lbs. (0.35 kg)
- 4 Switch Positions
- Continuous Rating of 300A. Intermittent Rating of 500A (5 minutes)
- 10 Second Cranking Rating of 1500A. 1 Minute Cranking Rating of 775A
- 4/0 Ga. (120 mm²) cable size to meet ratings
- 1.12" (28.45 mm) clearance For 4/0 Ga. cables
- Terminal stud size 3/8" -16 (M10)
- Terminal stud torque 120 in-lb (13.56 Nm)
- Switches isolated battery banks to all loads or combines battery banks to all loads
- Make before break contact design allows switching between battery banks without power interruptions
- Case design allows surface or rear panel mounting
- Ignition protected - safe for installation in gas engine compartments
- Isolating cover with snap-on sections protects rear contacts
- 2 Battery inputs
- 0.77 lbs. (0.35 kg)
- 4 Switch Positions
- Continuous Rating of 300A. Intermittent Rating of 500A (5 minutes)
- 10 Second Cranking Rating of 1500A. 1 Minute Cranking Rating of 775A
- 4/0 Ga. (120 mm²) cable size to meet ratings
- 1.12" (28.45 mm) clearance For 4/0 Ga. cables
- Terminal stud size 3/8" -16 (M10)
- Terminal stud torque 120 in-lb (13.56 Nm)
$15.00
Original: $50.00
-70%Battery Switch—
$50.00
$15.00Description
- Switches isolated battery banks to all loads or combines battery banks to all loads
- Make before break contact design allows switching between battery banks without power interruptions
- Case design allows surface or rear panel mounting
- Ignition protected - safe for installation in gas engine compartments
- Isolating cover with snap-on sections protects rear contacts
- 2 Battery inputs
- 0.77 lbs. (0.35 kg)
- 4 Switch Positions
- Continuous Rating of 300A. Intermittent Rating of 500A (5 minutes)
- 10 Second Cranking Rating of 1500A. 1 Minute Cranking Rating of 775A
- 4/0 Ga. (120 mm²) cable size to meet ratings
- 1.12" (28.45 mm) clearance For 4/0 Ga. cables
- Terminal stud size 3/8" -16 (M10)
- Terminal stud torque 120 in-lb (13.56 Nm)
